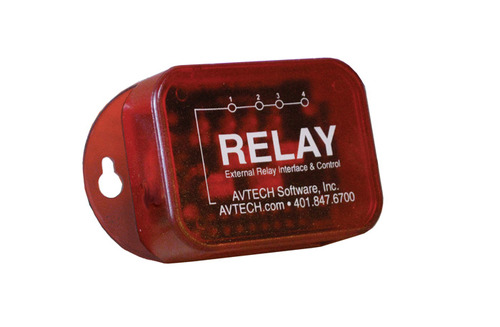

The AVTECH Relay Switch allows low voltage devices to be turned on/off. The Relay Switch supports up to 4 devices with visible relay status lights. Each relay supports loads up to 0.3A at 125VAC or 1A at 24VDC.

The first three (3) relay outputs on the Relay Switch can be individually controlled and activated directly from the Room Alert Web Interface or in response to an alarm condition. The forth relay output can be used as a general alarm output and will be activated whenever any of the first three (3) relay outputs are activated.

This is an instant 'Plug & Play' Switch that connects directly into the Light Tower Connection Port on the back of any Room Alert 32W, 32E, 4E or Signal Tower Combo ID box via the included 10´ Light Extension Cable. The Light Extension Cable can be extended to approximately 500´ by adding more extension cables. Switch cable is provided to connect the relay outputs to the desired device such as a building alarm panel or other notification system. Cable distance can be extended from the standard 25' to approximately 900' by using standard speaker wire, twisted pair or any reliable low voltage 2-wire cable. The AVTECH Relay Switch is compatible with AVTECH's Room Alert 32W, 32E, 4E, Signal Tower Combos and future environment monitoring models.
